Description

Projection System

3LCD Technology, RGB liquid crystal shutter
LCD Panel

0,59 inch with MLA (D10)
Color Light Output

3.000 Lumen- 2.000 Lumen (economy) In accordance with ISO 21118:2020
White Light Output

3.000 Lumen – 2.000 Lumen (economy) In accordance with ISO 21118:2020
Resolution

WXGA
High Definition

HD ready
Aspect Ratio

16:10
Light source

Lamp
Lamp

UHE, 188 W, 6.000 h durability, 12.000 h durability (economy mode)
Keystone Correction

Manual vertical: ± 30 °, Manual horizontal ± 30 °
Colour Video Processing

8 Bits
2D Vertical Refresh Rate

100 Hz – 120 Hz
Colour Reproduction

16.77 million colours
Optical
Throw Ratio

1,27 – 1,71:1
Zoom

Digital, Factor: 1 – 1,35
Lens

Optical
Screen Size

25 inches – 378 inches
Projection Distance Wide

0,9 m – 10,4 m
Projection Distance Tele

0,9 m – 10,4 m
Projection Distance Wide/Tele

1,64 m ( 60 inch screen
Projection Lens F Number

1,44
Projection Lens Focus

Manual
Offset

7 : 1
Connectivity

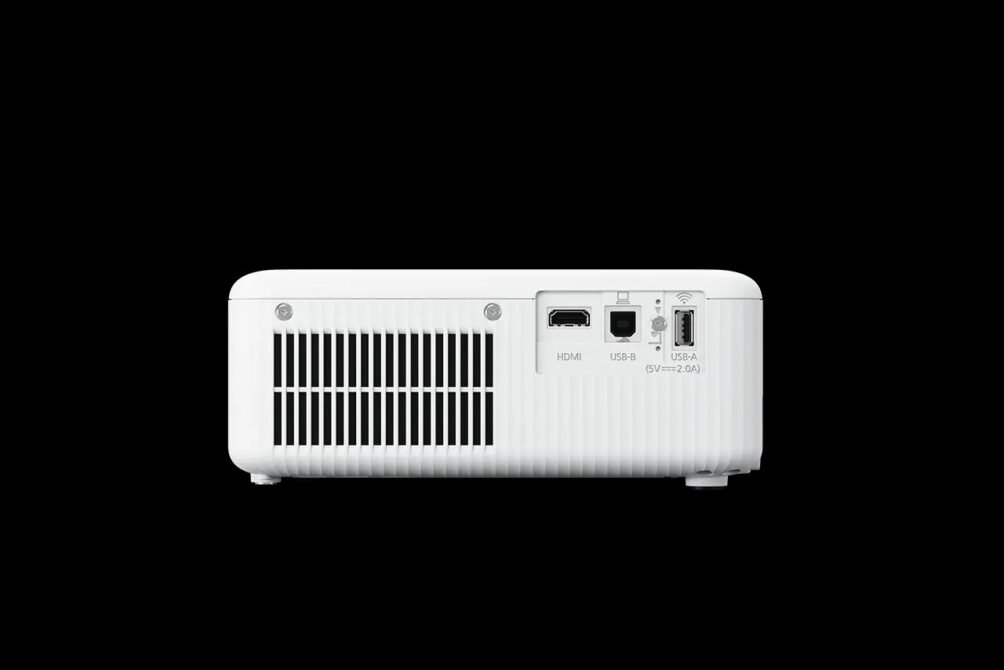

Interfaces

HDMI 1.4, USB 2.0-A, USB 2.0 Type B (Service Only)
Epson iProjection App

n/a
Advanced Features
Security

Kensington lock, Padlock, Security cable hole
2D Colour Modes

Dynamic, Cinema, Presentation, sRGB, Blackboard, Vivid
Other features

A/V mute, Built-in speaker, Horizontal and vertical keystone correction, MHL audio/video interface, Quick Corner

Video Color Modes

Blackboard, Cinema, Dynamic, Presentation
General
Power consumption

270 Watt (Peak), 214 Watt (Eco), 0,5 Watt (Energy saving standby)
Supply Voltage

AC 100 V – 240 V, 50 Hz – 60 Hz

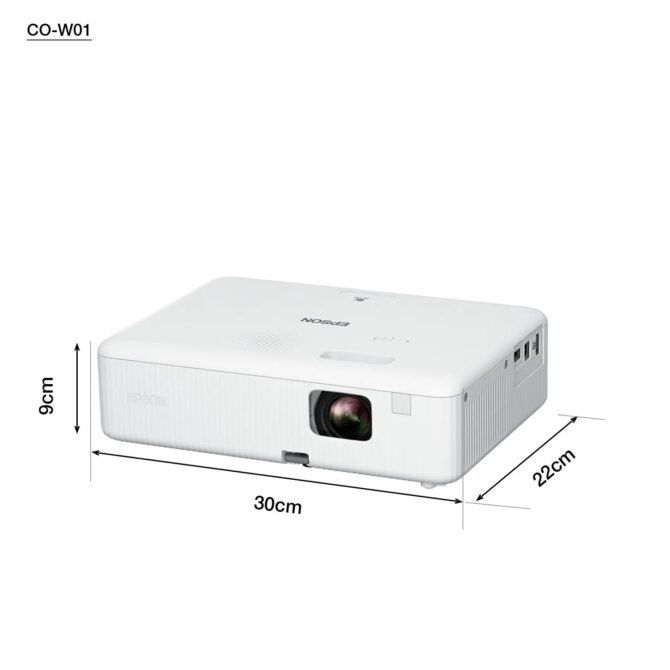

Product dimensions

295‎ x 211 x 87 mm (Width x Depth x Height)
Product weight

2,4 kg
Noise Level

Normal: 38 dB (A) – Economy: 29 dB (A)
Supported Temperature

Operation 5° C – 40° C
Supported Humidity

Operation -10% – 60%, Storage 10% – 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
Loudspeaker

5 Watt
What’s in the box

Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User manual (CD), Warranty card
Room Type / Application

Home Office, Home Photo, Streaming, TV & Box sets
Positioning

Ceiling Mounted, Desktop
Colour

White
